Spatial surveying with 3D laser technology
Building consultancy and purchasing services
Every assignment is a challenge
No two roll-outs are the same. Experience is a must in this job. However, even more crucial is team spirit and the creative energy to constantly find innovative ideas and thus make a success of every roll-out. We break new ground in the implementation of innovative developments and trends.
Every customer becomes a successful partnerWe aim to establish a successful partnership with our customers in every job we tackle. From the first point of contact we head to build a trusting business relationship and impress with our high standard of expertise and reliability in day-to-day business.

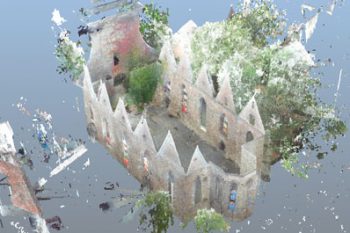

Step 1: Laser scanning and consolidation in a 3D point cloud modelThe positioned scanner captures its surrounding in a contact-free process and saves the data as a 3D point cloud in its coordinate system. At the same time the scanner saves a composite grayscale photo, which is subsequently projected onto a sphere. Depending on the resolution, scanning takes between two and 20 minutes. Around 40 - 80 scans are required for an area of 350 square metres, depending on furniture density and spatial irregularities. All 3D point clouds are consolidated into a complete 3D building model using special software.
Step 2: From 3D building model to CAD drawingVertical and horizontal cross-sections are extracted from the complete 3D building model and then imported into the CAD system over the DXF interface. All viewing directions (ceiling, floor, wall etc.) can be created in the 3D building model. This means that details of ornaments, ceiling divisions, pipes, conveyor belts, wall openings etc. can be precisely captured and displayed down to the last millimetre. A complete 3D line model can then be created on the basis of ground plans, views and cross-sections.

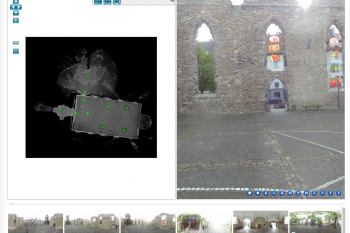

Step 3: Analysis/information/photo documentationThanks to the 3D building model the property can be conveniently assessed and analysed at your desk with no need for time-consuming travel to the actual location. During this 'virtual tour' all details can be accurately reviewed and examined. Scanning positions can be opened in a rotating 360° panorama view to measure distances, heights and detailed situations quickly and easily. If desired, all analyses and views can be saved as objects under test in the data system.
Non-contact and precise recording of the building
Short operating time on site without interrupting the ongoing business
Contactless scanning at a distance of up to 330 meters with no need of scaffolds
Further processing of the 3D model with sections, views etc.
Virtual viewing of the site by processing the 3D measurement
Legally securing evidence
Planning and controlling as guarantee
of successful project implementation
A strategically pertinent analysis and project preparation guarantees successful project implementation. Every assignment starts with a common definition of quality as reference for exactly determining the service scope of all subsequent project partners.
Permission and execution planning
Drafting call for
Project management and control
Our strength lies in organising the building process with maximum predictability.
